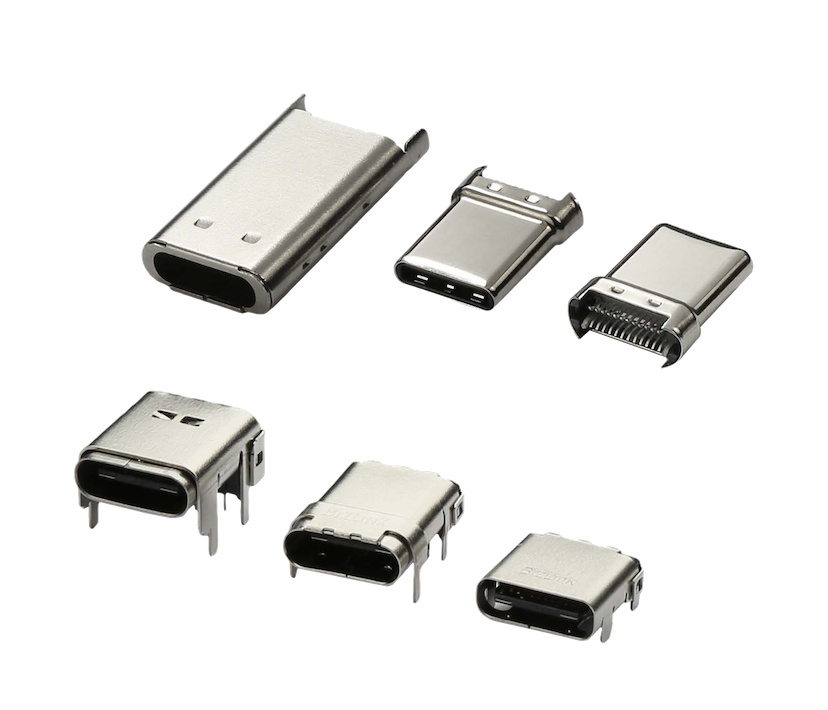

USB4 Gen 3 Type-C Connector

Our USB Type-C connector supports USB PD up to 100W (5A current rating) and complies with USB 3.1 Gen 1/2 and USB4 Gen 3 requirements. It features optional E-marker, 30u"/15u" gold plating, enhanced robustness, complete EMI shielding, and passes 10,000 durability cycles with specific mating/un-mating force ranges.

Product Features

  • USB power delivery up to 100W
  • Option to seam or deep draw with E-marker
  • Terminal with 30u" and 15u" gold plating options
  • Secondary forming shell to enhance connector robustness
  • DIP+SMT R/A
  • Complete EMI shielding enclosure design
  • Comply with USB 3.1 Gen 1 (5Gbps) and Gen 2 (10Gbps) requirements
  • Comply with USB4™ Gen 3 Type-C connector
  • Current rating of 5A (suitable for power delivery)
  • Vertical wrenching tests- 0.8Nm
  • Mating force range: 5N- 20N
  • Un-mating force range: 6N - 20N
  • Durability test- 10,000 Cycles without damage
USB4 Gen 3 Type-C Connector
Serial No:
This is some text inside of a div block.

Our USB Type-C connector supports USB PD up to 100W (5A current rating) and complies with USB 3.1 Gen 1/2 and USB4 Gen 3 requirements. It features optional E-marker, 30u"/15u" gold plating, enhanced robustness, complete EMI shielding, and passes 10,000 durability cycles with specific mating/un-mating force ranges.
