Product Features
- 415Vac/480Vac, 100A, 3-phase 5 wires to 3 single-phase 5 wires
- 1U AC input connection with 1–2 AWG Type-W cable and junction box; IP44/IP67 plug options
- Supports UL 2137 silicone cable for high-temperature applications, enabling greater flexibility and easier cable routing
- IEC/UL and EU certified for global deployment
- 1U compact connection design for flexible rack-level power installation

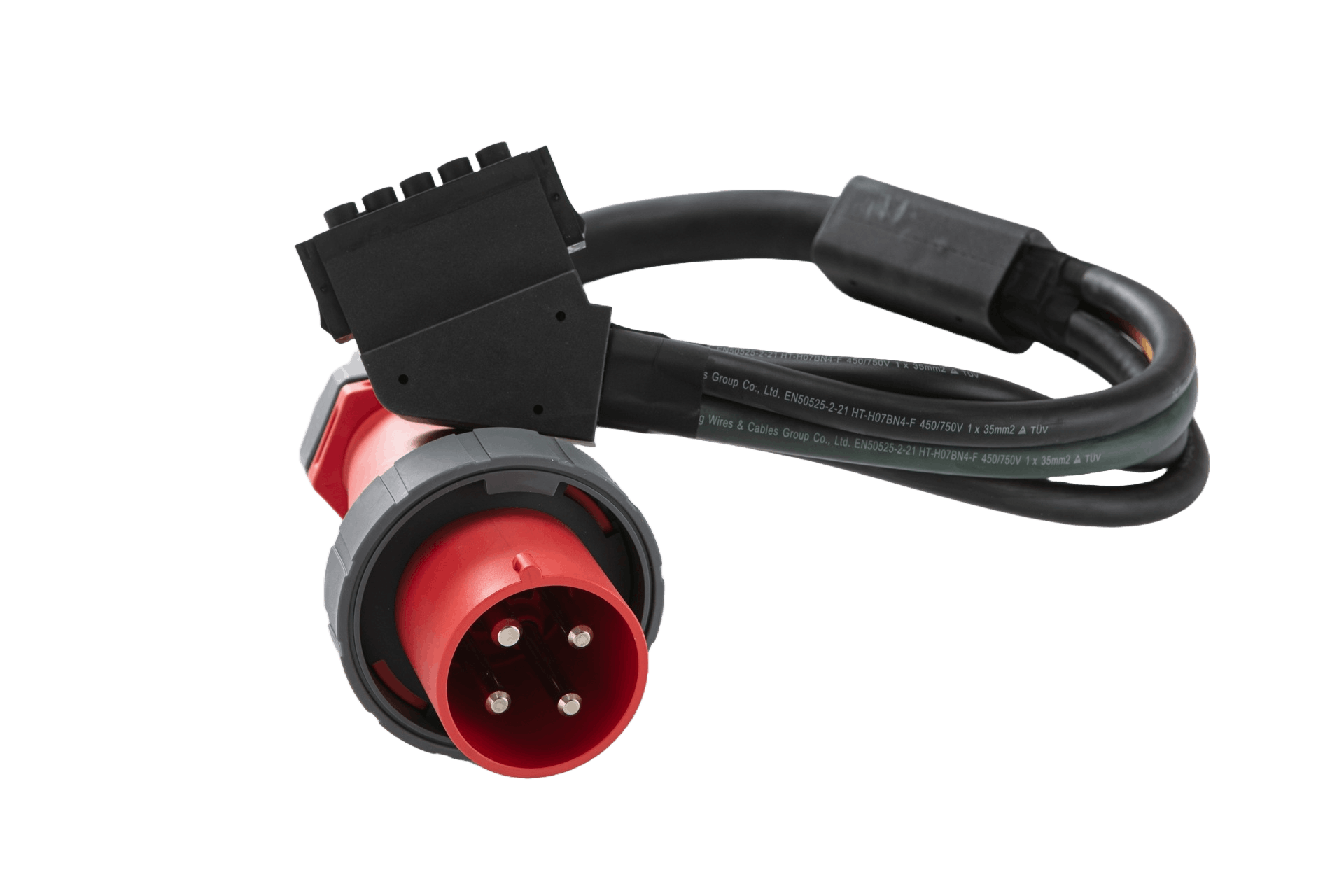

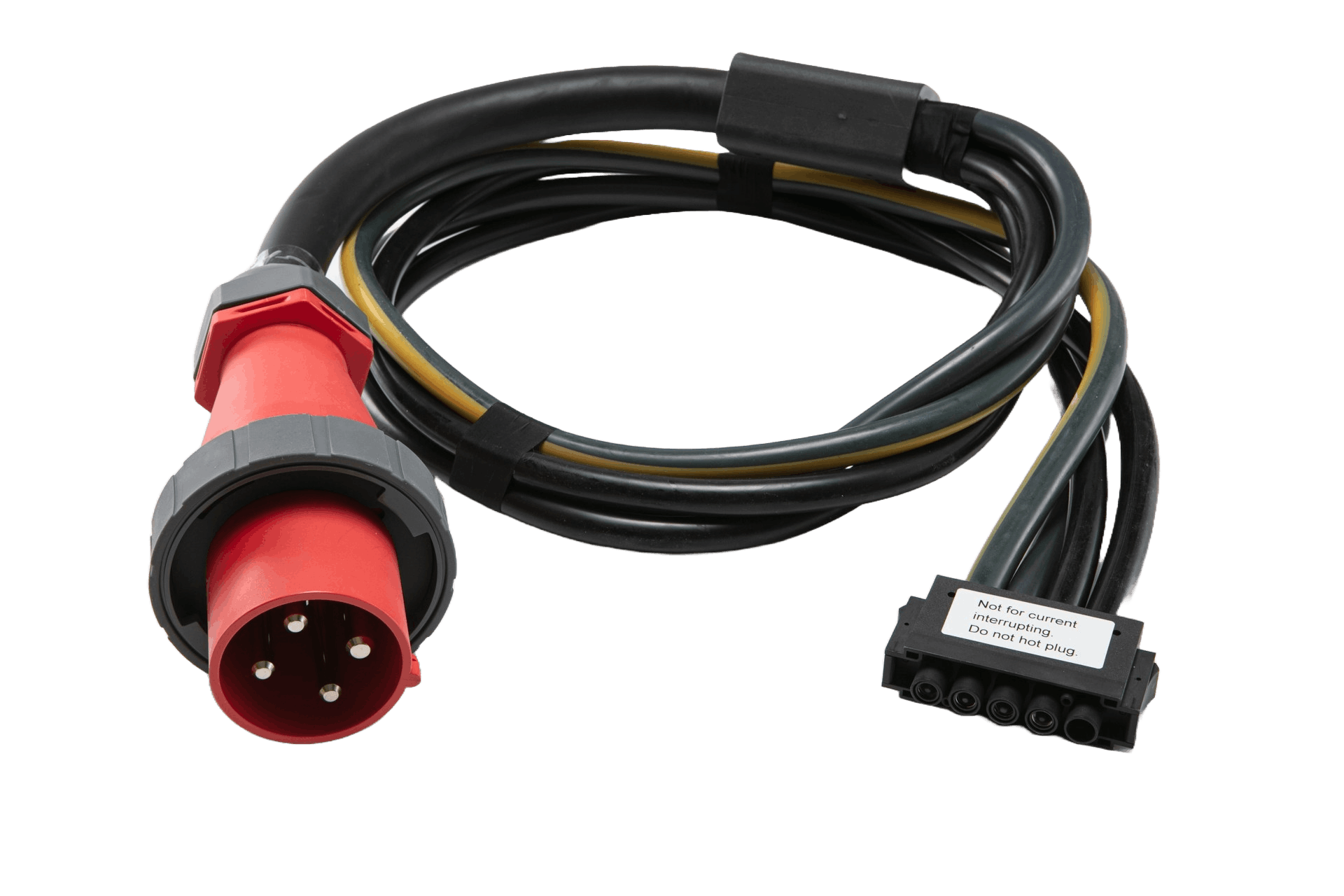

- Available in Right-Angle (R/A), Side-Exit, and Straight-Exit configurations
- Customizable cable length from standard 1.5 m up to approximately 20 m
- Application: NVIDIA NVL72 Platform & 110 kW Power Shelf
.png)
100A AC Power Whip
NVL72 100A AC Power Whip
