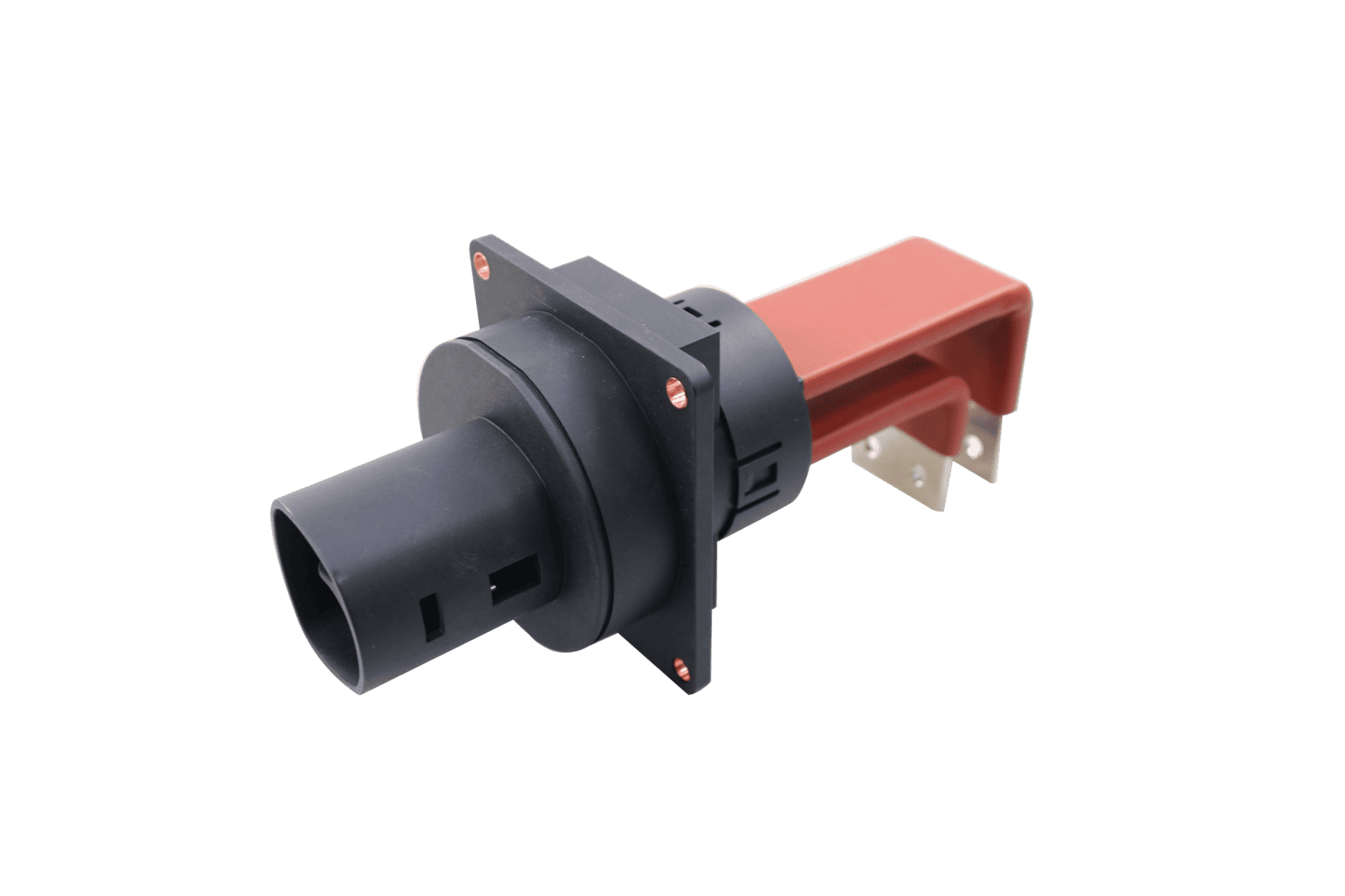

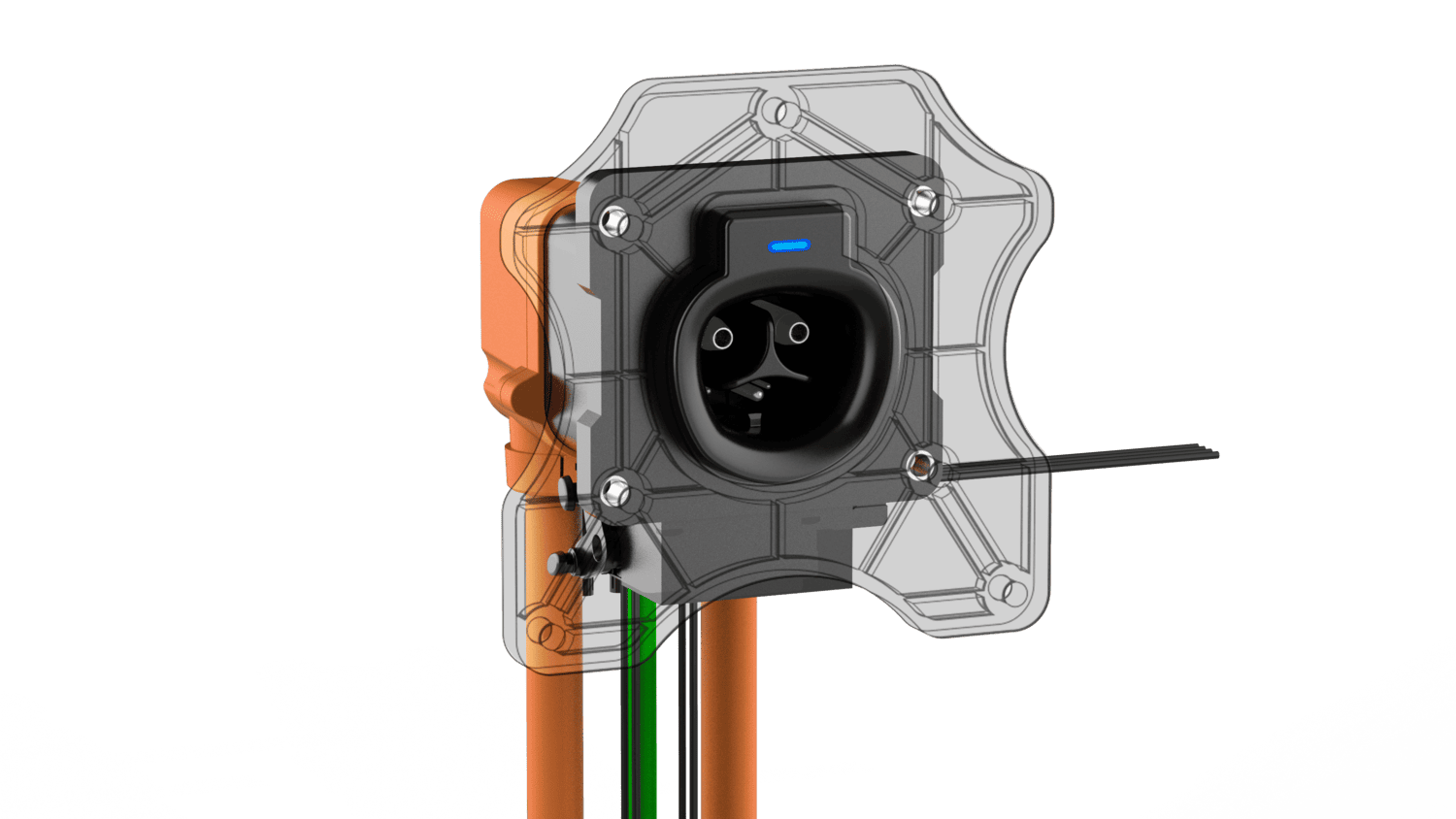

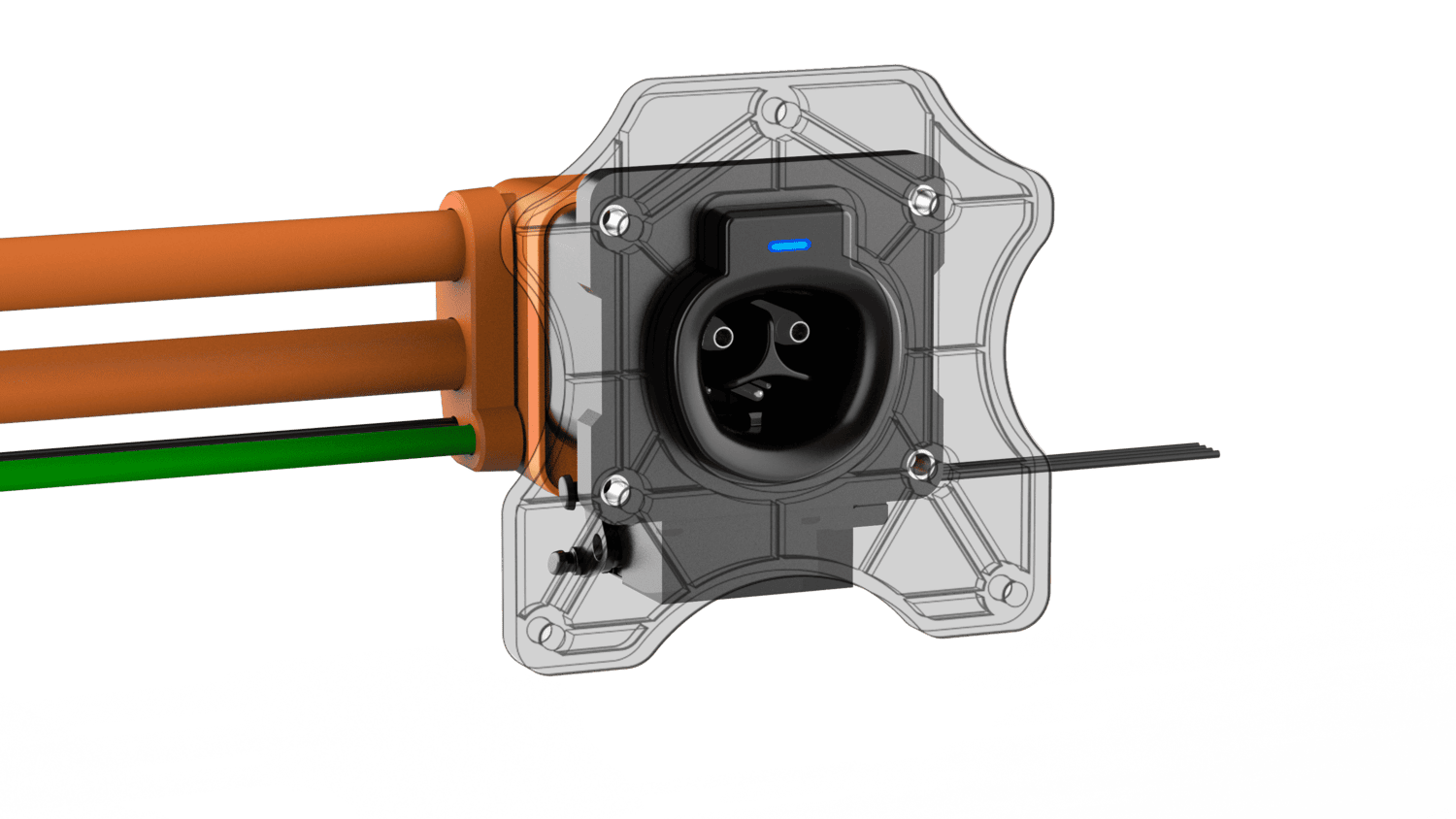

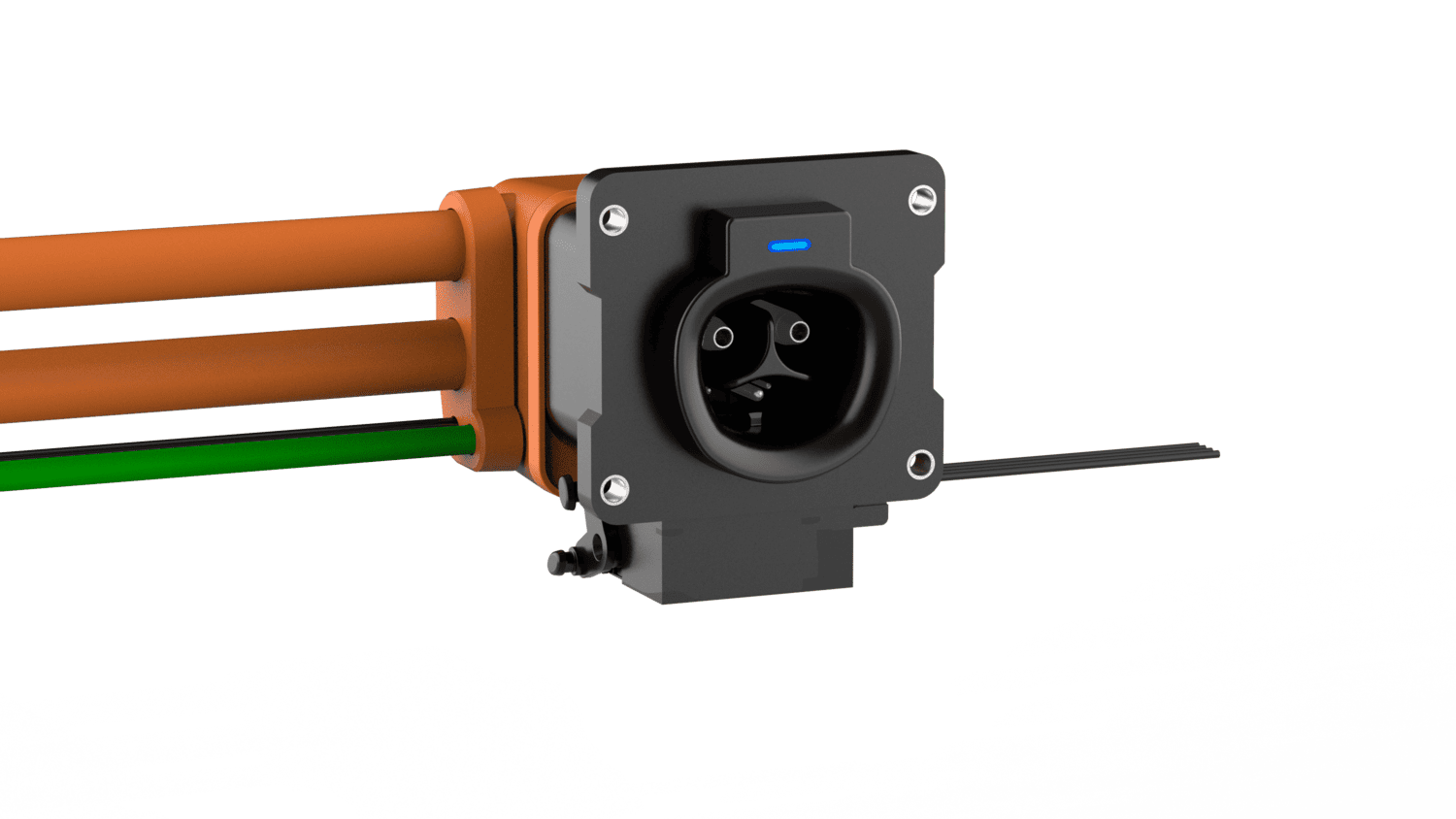

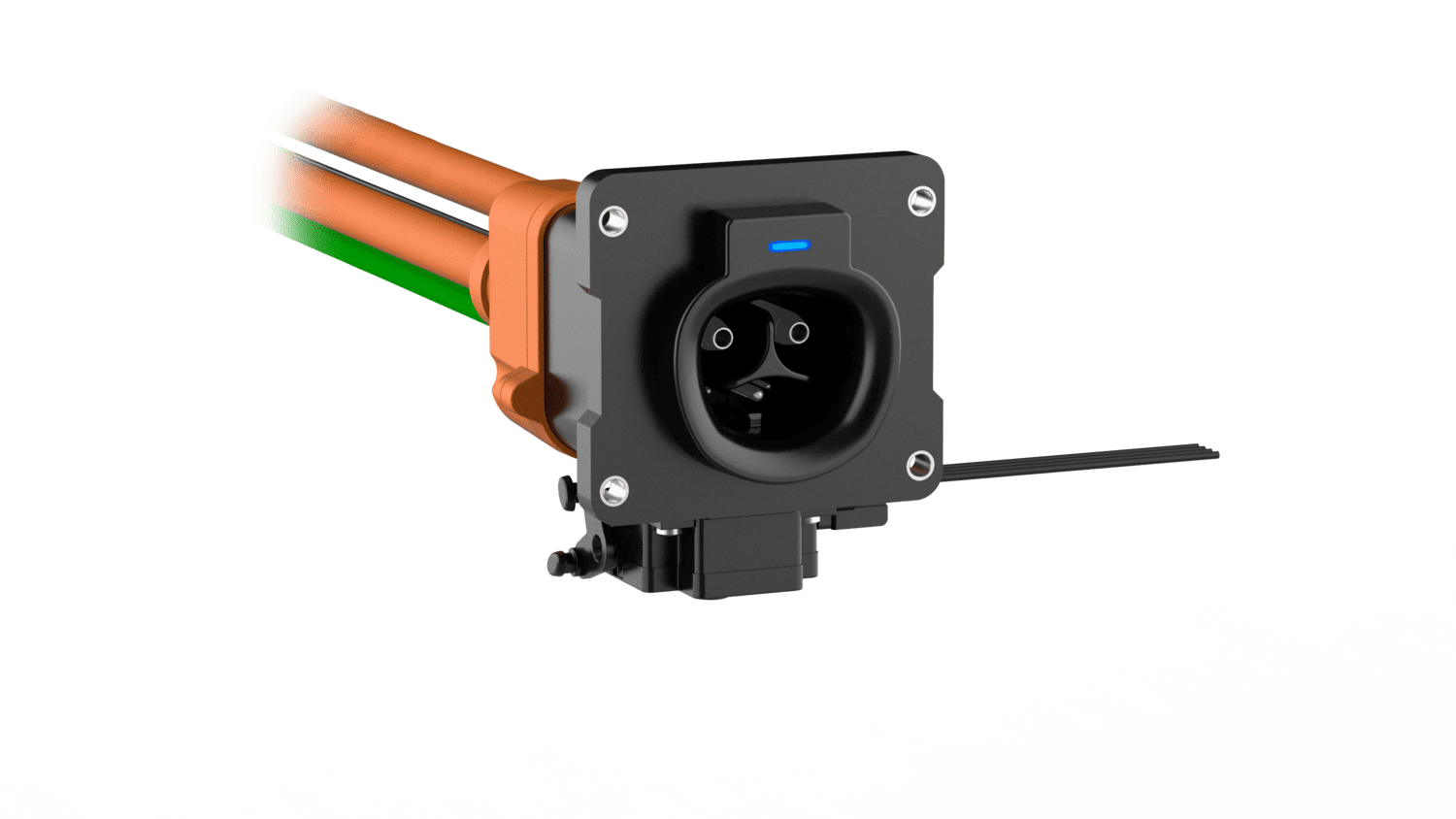

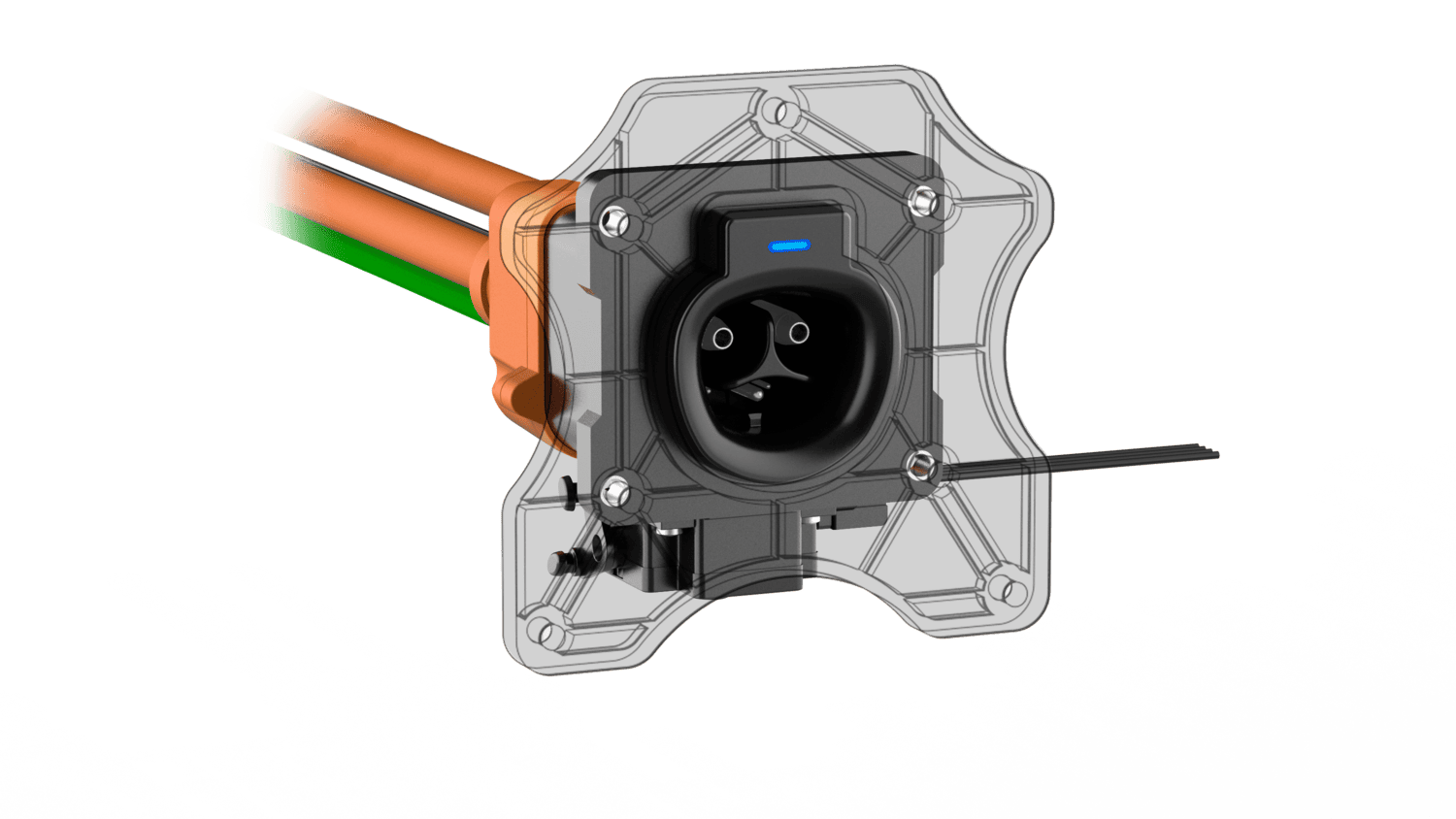

NACS Charging Inlet
NACS is North American Charging System which is a unified port for AC and DC charging. The NACS AC/DC charging inlets are a series of modularized products which cover wide current range, two cooling ways, three cable outlets, and conductor types. The interfact panel is a standard part for customers to neect to their own vehicles with a brucket. The brucket could be designed by us or customers themself.
%20(1)%20(1).png)
.png)
.png)
.png)
.png)
.png)
.png)
Product Features
- Current Range: 16A to 300A with cables without cooling, up to 500A with cooling cables
- Cable: unshielded and shielded AL/Cu cables, and indirect liquid-cooled cables
- Cable outlet: downward, backward, sideways
- Waterproof: IP 67 for terminals
- Termination: Crimping or Ultrasonic Welding
Standard: SAE J3400
NACS is North American Charging System which is a unified port for AC and DC charging. The NACS AC/DC charging inlets are a series of modularized products which cover wide current range, two cooling ways, three cable outlets, and conductor types. The interfact panel is a standard part for customers to neect to their own vehicles with a brucket. The brucket could be designed by us or customers themself.
