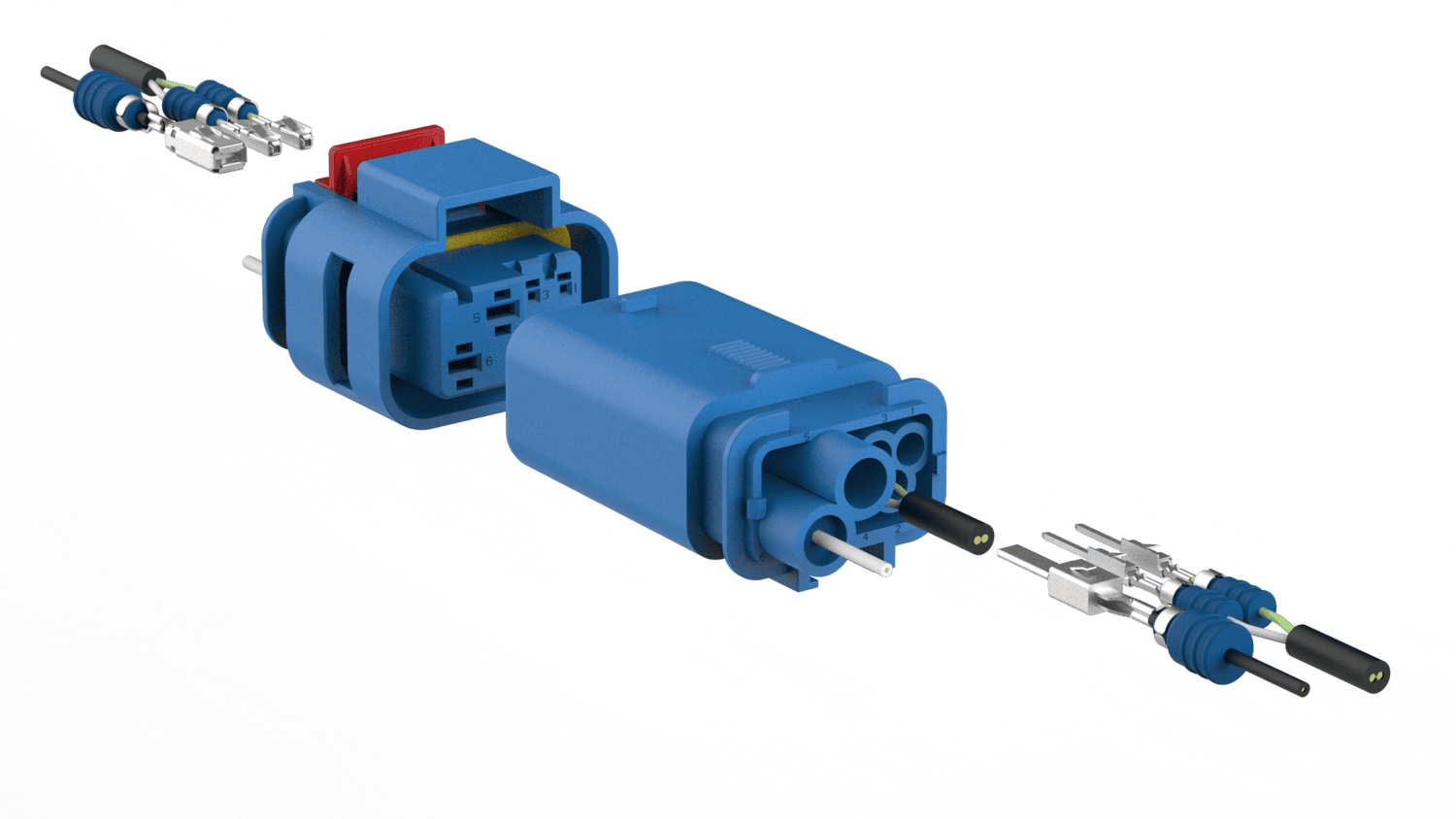

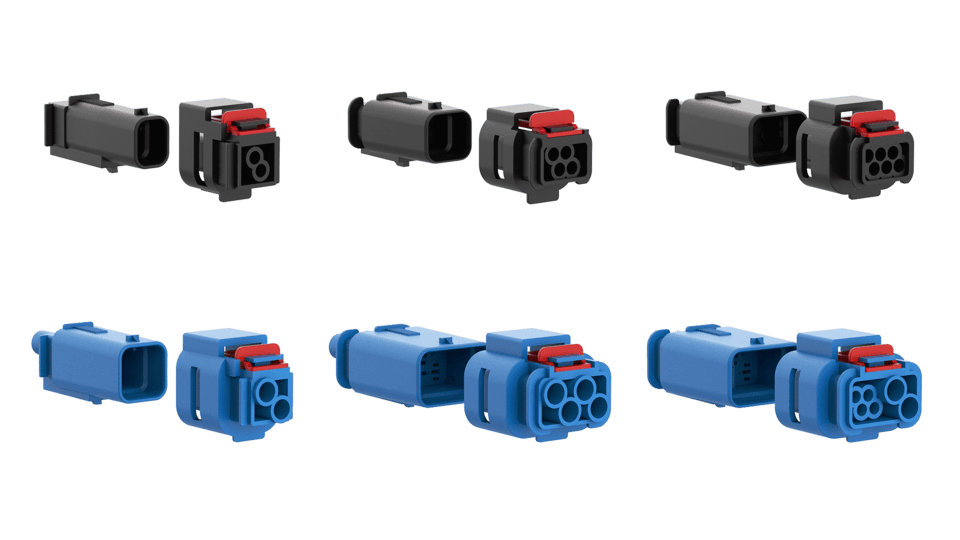

48V Connector and Assembly (LVCS)
New Zonal E/E architecture adopts 48V power system to reduce power losses. The 48V connectors and assemblies are the interconnects for connecting actuators and drives according to 48V LVCS standard. It defines a searies of connector interfaces combining power and signal ports.
48v-connector-and-assembly-lvcs
%20(1).png)
%20(2).png)
No items found.
No items found.
Product Features
- Operation Voltage: 12V, 24V, 48V
- Blade Size: 0.64mm for signal and 2.8mm for power
- Termination: Crimping
- Standard: LVCS
- Current at 85⁰C: 25A
- Waterproof: Cable and housing sealed
- Mechanical secureness: CPA and TPA
- Singal Cable: unshielded twisted pair for 100BASE-TX and 10BASE-T1S
48V Connector and Assembly (LVCS)
New Zonal E/E architecture adopts 48V power system to reduce power losses. The 48V connectors and assemblies are the interconnects for connecting actuators and drives according to 48V LVCS standard. It defines a searies of connector interfaces combining power and signal ports.
